6.1.7 Working with Linux firewalls

Banner

Firewalls are an integral part of security for any operating system, including Linux. They function as a barrier between Your system and the external world, controlling incoming and outgoing network traffic according to predefined security rules. In Linux, there are several tools for firewall management, each with its own features and applications.

Configuring firewalls is a critical aspect of protecting Linux servers and workstations from unauthorized access, various types of attacks, and potential vulnerabilities. A properly configured firewall allows You to restrict access to Your system, permitting only authorized traffic and blocking everything else.

In the Linux context, firewalls typically operate at the kernel level, directly affecting the operating system’s network stack. This ensures high efficiency and performance when filtering network traffic, which is especially important for high-load servers and systems with limited resources.

Important: before making any changes to firewall settings, always create backups of the current configuration. Incorrect configuration can lead to loss of system access, which is especially important during remote administration.

Comparative Characteristics of Linux Firewalls

IPTables

  • Advantages: versatile and flexible, low-level access, high performance
  • Disadvantages: complex syntax, complicated management, lack of built-in preservation methods
  • Recommended for: experienced administrators, situations requiring detailed control

UFW

  • Advantages: simple syntax, easy to use, integrated into Ubuntu/Debian
  • Disadvantages: less flexible than IPTables, limited capabilities for complex scenarios
  • Recommended for: beginners, simple configurations, workstations

FirewallD

  • Advantages: dynamic management, security zones, simple syntax for complex settings
  • Disadvantages: relatively new system, less documented than IPTables
  • Recommended for: modern RHEL/CentOS/Fedora/AlmaLinux/RockyLinux systems, servers with different security requirements

IPTables

IPTables is a traditional and universal tool for firewall configuration in Linux, which directly interacts with the Linux kernel’s packet filtering functions (Netfilter).

Basic IPTables Concepts

IPTables organizes filtering rules into tables, chains, and rules:

  • Tables: define the type of packet processing (filter, nat, mangle, raw, security)

    • filter: used for packet filtering (allowing or blocking traffic)
    • nat: used for network address translation
    • mangle: allows modification of packet headers
    • raw: used for setting exceptions from connection tracking
    • security: used for network access control rules (SELinux)

  • Chains: groups of rules for a specific type of traffic

    • INPUT: controls packets destined for the local system
    • OUTPUT: controls packets created by the local system
    • FORWARD: controls packets being routed through the system
    • PREROUTING: for packets before routing decisions are made
    • POSTROUTING: for packets after routing decisions are made

  • Rules: specific conditions and actions for packets

    • Actions (targets): ACCEPT, DROP, REJECT, LOG, RETURN, and others
    • Conditions: protocol, IP address, port, connection state, etc.

Basic IPTables Commands

Key Table for IPTables
Key Description
-A (–append) Adds a new rule to the end of the specified chain
-D (–delete) Removes a rule from the chain (by number or exact match)
-I (–insert) Inserts a rule at the specified position in the chain
-R (–replace) Replaces a rule at the specified position
-L (–list) Lists all rules in the specified chain
-F (–flush) Removes all rules from the specified chain
-P (–policy) Sets the default policy for the chain
-N (–new-chain) Creates a new user chain
-X (–delete-chain) Deletes an empty user chain
-t (–table) Specifies the table (filter, nat, mangle, raw, security)
-p (–protocol) Specifies the protocol (tcp, udp, icmp, all)
-s (–source) Specifies the source address/subnet
-d (–destination) Specifies the destination address/subnet
-i (–in-interface) Specifies the incoming network interface
-o (–out-interface) Specifies the outgoing network interface
--dport Specifies the destination port (used with -p)
--sport Specifies the source port (used with -p)
-j (–jump) Specifies the action (ACCEPT, DROP, REJECT, LOG, etc.)
-m (–match) Loads a match extension (state, limit, conntrack, etc.)
--line-numbers Shows line numbers when listing rules
--state Specifies connection state (NEW, ESTABLISHED, RELATED, INVALID)
--ctstate Specifies connection state for the conntrack module
--limit Limits the rate of packet processing
--limit-burst Specifies the initial value of the counter for limiting
--log-prefix Adds a prefix to log entries
--icmp-type Specifies the ICMP message type
--to-port Specifies the target port for REDIRECT
--to-destination Specifies the target address for DNAT

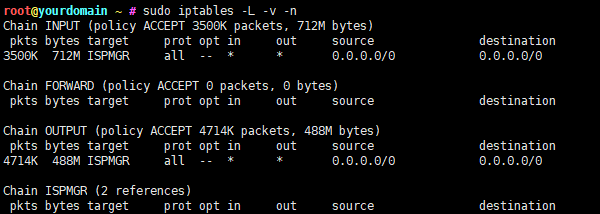

Viewing current rules:

  1. sudo iptables -L -v -n

Display all rules: rules

Viewing rules with line numbers:

  1. sudo iptables -L --line-numbers

Viewing rules for a specific table:

  1. sudo iptables -t nat -L -v

Adding a rule: allowing incoming SSH connection:

  1. sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT

Adding a rule with IP address restriction:

  1. sudo iptables -A INPUT -p tcp --dport 22 -s 192.168.1.0/24 -j ACCEPT

Blocking all other incoming connections:

  1. sudo iptables -A INPUT -j DROP

Adding a rule at the beginning of the chain:

  1. sudo iptables -I INPUT 1 -p tcp --dport 80 -j ACCEPT

Removing a rule by number:

  1. sudo iptables -D INPUT 3

Removing a rule by content:

  1. sudo iptables -D INPUT -p tcp --dport 80 -j ACCEPT

Saving rules (Debian/Ubuntu):

  1. sudo netfilter-persistent save

Saving rules (CentOS/RHEL):

  1. sudo service iptables save

Basic Configuration Example

Clearing all rules:

  1. sudo iptables -F

Setting default policies:

  1. sudo iptables -P INPUT DROP

  2. sudo iptables -P FORWARD DROP

  3. sudo iptables -P OUTPUT ACCEPT

Allowing local connections:

  1. sudo iptables -A INPUT -i lo -j ACCEPT

Allowing established connections:

  1. sudo iptables -A INPUT -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT

Allowing SSH:

  1. sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT

Allowing HTTP and HTTPS:

  1. sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT

  2. sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT

Allowing ICMP (ping):

  1. sudo iptables -A INPUT -p icmp --icmp-type echo-request -j ACCEPT

Logging and blocking all other connections:

  1. sudo iptables -A INPUT -j LOG --log-prefix "IPTables-Dropped: "

  2. sudo iptables -A INPUT -j DROP

Advanced IPTables Features

Limiting the number of new connections:

  1. sudo iptables -A INPUT -p tcp --dport 22 -m state --state NEW -m limit --limit 3/minute --limit-burst 3 -j ACCEPT

Blocking specific IP addresses:

  1. sudo iptables -A INPUT -s 10.0.0.5 -j DROP

Setting up port forwarding:

  1. sudo iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 80 -j REDIRECT --to-port 8080

Setting up NAT for internal network access to the external network:

  1. sudo iptables -t nat -A POSTROUTING -o eth0 -s 192.168.1.0/24 -j MASQUERADE

Important: IPTables commands are applied immediately but are not saved after reboot without additional actions. Use appropriate tools to save the configuration according to Your distribution.

UFW (Uncomplicated Firewall)

UFW is a layer on top of IPTables, designed to simplify firewall management. It is most commonly used in Ubuntu and Debian-based distributions. UFW was created to provide an easy-to-use interface that hides the complexities of IPTables while maintaining its power.

UFW Working Principle

UFW uses the principle of allow/deny rules for services and ports. Instead of complex IPTables commands, UFW allows the use of simple commands with keywords like “allow”, “deny”, “reject” and others. This makes it ideal for beginning administrators or for systems with uncomplicated security requirements.

UFW rules are processed in the order they are added, from first to last. When a matching rule is found, processing stops. If no rule matches a packet, the default policy is applied.

Basic UFW Commands

Key Table for UFW
Key Description
enable Activates the firewall
disable Deactivates the firewall
status Shows the current firewall status
status verbose Shows detailed firewall status
status numbered Shows rules with numbers
default Sets the default policy (allow/deny)
allow Allows connections (port, service, address)
deny Blocks connections without notification
reject Blocks connections with notification
delete Deletes a rule (by number or content)
insert Inserts a rule at the specified position
route Manages packet forwarding rules
logging Manages logging mode (on/off/low/medium/high/full)
app list Shows a list of available application profiles
app info Shows information about an application profile
from Specifies the connection source (IP address, network)
to Specifies the connection destination
port Specifies a port or port range
proto Specifies the protocol (tcp/udp)
on Specifies a network interface
comment Adds a comment to a rule

Installing UFW:

  1. sudo apt install ufw

Activating UFW:

  1. sudo ufw enable

Deactivating UFW:

  1. sudo ufw disable

Checking status:

  1. sudo ufw status verbose

Status check result: Status

Setting default policies:

  1. sudo ufw default deny incoming

  2. sudo ufw default allow outgoing

Allowing a service by name:

  1. sudo ufw allow ssh

Allowing a port by number:

  1. sudo ufw allow 80/tcp

Allowing a port range:

  1. sudo ufw allow 6000:6007/tcp

Blocking a port:

  1. sudo ufw deny 23/tcp

Rejecting requests with notification:

  1. sudo ufw reject 80/tcp

Deleting a rule:

  1. sudo ufw delete allow 80/tcp

Allowing access for a specific application from profiles:

  1. sudo ufw app list

  2. sudo ufw allow 'Nginx Full'

Using Numeric Ordinal Numbers

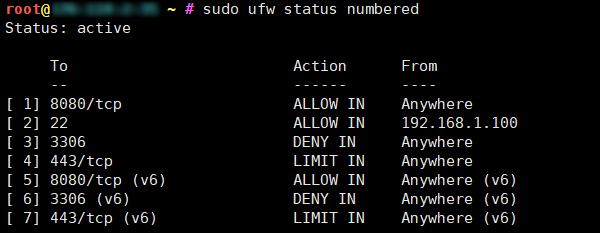

Viewing rules with numbers:

  1. sudo ufw status numbered

When you enter the command, you will see a list of rules and their numbers: Правила

Deleting a rule by number:

  1. sudo ufw delete 2

Defining Additional Parameters

Allowing access from a specific IP address:

  1. sudo ufw allow from 192.168.1.100

Allowing access to a specific port from a specific IP address:

  1. sudo ufw allow from 192.168.1.100 to any port 22

Allowing access from a specific subnet:

  1. sudo ufw allow from 192.168.1.0/24

Allowing access from a specific subnet to a specific port:

  1. sudo ufw allow from 192.168.1.0/24 to any port 3306

Allowing access through a specific interface:

  1. sudo ufw allow in on eth1 to any port 80

Setting up port forwarding (requires additional settings):

  1. sudo ufw route allow proto tcp from any to any port 80

Enabling logging:

  1. sudo ufw logging on

  2. sudo ufw logging medium

Reminder: after activating UFW, make sure You have added a rule to allow SSH or another remote access method, otherwise You may lose access to the system.

FirewallD

FirewallD is a modern firewall management framework that is the standard for Red Hat-based distributions (RHEL, CentOS, AlmaLinux, RockyLinux). It uses the concept of zones and services to simplify management.

Basic FirewallD Concepts:

  • Zones: predefined sets of rules for different trust levels

    • public: for untrusted zones, public networks
    • home: for home networks, most computers in the network are trusted
    • work: for work networks, most computers are trusted
    • trusted: all connections are accepted
    • dmz: for computers in a demilitarized zone
    • external: for use in routers with NAT
    • internal: for the internal side of a gateway
    • block: rejects all incoming connections
    • drop: drops all incoming connections without notifications

  • Services: definitions for standard programs (http, ssh, ftp, etc.)

    • Each service contains information about ports, protocols, and modules
    • Allows the use of understandable names instead of port numbers

  • Permanent and temporary rules:

    • Temporary: active until reboot or service restart
    • Permanent: saved after reboot (option --permanent)

Zones are a central concept in FirewallD and represent different levels of trust for network connections. Each zone can be configured with its own set of firewall rules, and network interfaces can be assigned to specific zones according to their security needs. This allows easy management of different network environments from a single system.

Basic FirewallD Management

Before starting to configure firewall rules, it’s important to be able to check the current state of the system and perform basic FirewallD management. This allows the administrator to understand the existing configuration and effectively make changes.

Key Table for FirewallD
Key Description
--state Shows the state of the FirewallD service
--reload Reloads the configuration
--complete-reload Complete reload, including all modules
--runtime-to-permanent Saves current temporary rules as permanent
--permanent Marks a change as permanent (saved after reboot)
--get-default-zone Shows the default zone
--set-default-zone Sets the default zone
--get-zones Lists all available zones
--get-active-zones Lists active zones with assigned interfaces
--zone Specifies a zone for an operation
--list-all Lists all parameters of a specified zone
--list-all-zones Lists parameters of all zones
--new-zone Creates a new zone
--get-services Lists all available services
--get-icmptypes Lists all available ICMP types
--add-service Adds a service to a zone
--remove-service Removes a service from a zone
--add-port Adds a port to a zone
--remove-port Removes a port from a zone
--add-protocol Adds a protocol to a zone
--remove-protocol Removes a protocol from a zone
--add-interface Binds an interface to a zone
--remove-interface Removes an interface from a zone
--add-source Adds a source (IP/network) to a zone
--remove-source Removes a source (IP/network) from a zone
--add-masquerade Enables masquerading (NAT) for a zone
--remove-masquerade Disables masquerading for a zone
--add-forward-port Adds a port forwarding rule
--remove-forward-port Removes a port forwarding rule
--add-rich-rule Adds an advanced rule to a zone
--remove-rich-rule Removes an advanced rule from a zone
--query-masquerade Checks the state of masquerading for a zone
--new-service Creates a new service
--service Specifies a service for configuration
--set-description Sets a description for a service/zone
--add-port-to-service Adds a port to a service
--info-service Shows information about a service
--timeout Sets a temporary rule for a specified period

Check if the FirewallD service is running:

  1. sudo firewall-cmd --state

If the service is running, you will see running: running

Check the FirewallD version:

  1. sudo firewall-cmd --version

Get a list of all available zones in the system:

  1. sudo firewall-cmd --get-zones

View active zones along with their assigned interfaces:

  1. sudo firewall-cmd --get-active-zones

Examine the settings of a specific zone in detail:

  1. sudo firewall-cmd --zone=public --list-all

For a complete system audit, you can view all zones along with their settings:

  1. sudo firewall-cmd --list-all-zones

View all zones together with settings: Всі зони

Managing services and ports. FirewallD uses the concept of “services” for convenient access management to standard programs. Viewing available services:

  1. sudo firewall-cmd --get-services

Check which services are allowed in a specific zone:

  1. sudo firewall-cmd --zone=public --list-services

Add permission for a service on a permanent basis:

  1. sudo firewall-cmd --zone=public --add-service=http --permanent

For temporary testing, you can add a service without the --permanent parameter:

  1. sudo firewall-cmd --zone=public --add-service=https

Remove permission for a service:

  1. sudo firewall-cmd --zone=public --remove-service=http --permanent

For non-standard programs, you can allow access by port number:

  1. sudo firewall-cmd --zone=public --add-port=8080/tcp --permanent

Remove permission for a port:

  1. sudo firewall-cmd --zone=public --remove-port=8080/tcp --permanent

After making changes, you need to apply them:

  1. sudo firewall-cmd --reload

Advanced Settings and Zone Management

FirewallD provides flexible capabilities for network security configuration, allowing the creation of complex rules for different network environments.

Zone and interface configuration. Set the default zone for all new connections:

  1. sudo firewall-cmd --set-default-zone=home

Bind a network interface to a specific zone:

  1. sudo firewall-cmd --zone=trusted --add-interface=eth0 --permanent

Remove an interface from a zone:

  1. sudo firewall-cmd --zone=trusted --remove-interface=eth0 --permanent

Find out which zone an interface belongs to:

  1. sudo firewall-cmd --get-zone-of-interface=eth0

For specific needs, you can create your own zone:

  1. sudo firewall-cmd --permanent --new-zone=myzone

  2. sudo firewall-cmd --reload

Service configuration and advanced rules. Get detailed information about a service:

  1. sudo firewall-cmd --info-service=http

Create your own service for a non-standard program:

  1. sudo firewall-cmd --permanent --new-service=myservice

  2. sudo firewall-cmd --permanent --service=myservice --set-description="My Custom Service"

  3. sudo firewall-cmd --permanent --service=myservice --add-port=12345/tcp

  4. sudo firewall-cmd --reload

For more complex network interaction scenarios, FirewallD supports masquerading (NAT) and port forwarding:

  1. sudo firewall-cmd --zone=external --add-masquerade --permanent

Check the masquerading state for a zone:

  1. sudo firewall-cmd --zone=external --query-masquerade

Configure port forwarding within a single server:

  1. sudo firewall-cmd --zone=public --add-forward-port=port=80:proto=tcp:toport=8080 --permanent

Forward traffic to another host:

  1. sudo firewall-cmd --zone=public --add-forward-port=port=80:proto=tcp:toport=8080:toaddr=192.168.1.10 --permanent

Advanced Rules and Security

For implementing complex network security policies, FirewallD supports so-called “rich rules,” which provide maximum flexibility in configuration.

Add a rule to allow HTTP access from a specific IP address:

  1. sudo firewall-cmd --zone=public --add-rich-rule='rule family="ipv4" source address="192.168.1.10" service name="http" accept' --permanent

Block access from a specific IP address:

  1. sudo firewall-cmd --zone=public --add-rich-rule='rule family="ipv4" source address="192.168.1.10" reject' --permanent

Limit the number of incoming connections to enhance security:

  1. sudo firewall-cmd --zone=public --add-rich-rule='rule family="ipv4" source address="192.168.1.0/24" service name="http" accept limit value="5/m"' --permanent

Important: FirewallD rules added without the --permanent parameter will be lost after system or service restart. Always use --permanent for permanent changes and execute --reload to apply changes.

Conclusion

Linux firewalls provide convenient tools for protecting Your systems from unauthorized access and network attacks. The choice of a specific tool depends on Your needs, level of experience, and the Linux distribution You are using.

IPTables remains the best low-level tool for experienced administrators, UFW offers a simplified interface for basic needs, and FirewallD provides a balance between simplicity and functionality with support for dynamic management.

Regardless of the chosen tool, it is important to follow best security practices and regularly update the firewall configuration according to changing security requirements and the needs of Your infrastructure.

Best Security Practices:
  1. Principle of least privilege: allow only necessary traffic and block everything else.
  2. Regular audits: periodically check firewall rules for compliance with current security requirements.
  3. Change documentation: maintain a log of all changes to the firewall configuration.
  4. Backup: always create backups of the configuration before making changes.
  5. Testing: verify changes in a test environment before applying them to production systems.

Never rely exclusively on a firewall for the security of Your system. A firewall is just one component of a comprehensive security strategy, which should also include timely updates, proper user and permission management, system monitoring, and other security measures.
